Connection
FE attached links
The FE needs to attach a link with sender role to the Last Will and Testament Service control address. It should have QoS as AT_LEAST_ONCE so with :
- rcv-settle-mode : first (0)
- snd-settle-mode : unsettled (0)
The FE needs to attach a link with sender role to the Subscription Service control address. It should have QoS as AT_LEAST_ONCE so with :
- rcv-settle-mode : first (0)
- snd-settle-mode : unsettled (0)
The FE needs to attach a link with receiver role to the unique client control address $mqtt.to.[client-id].control. It should have QoS as AT_LEAST_ONCE so with :
- rcv-settle-mode : first (0)
- snd-settle-mode : unsettled (0)
This address is useful for receiving control messages (i.e. from the Subscription Service).
The FE needs to attach a link with receiver role to the unique client publish address $mqtt.to.[client-id].publish. It should have QoS as AT_LEAST_ONCE so with :
- rcv-settle-mode : first (0)
- snd-settle-mode : unsettled (0)
or using "mixed" (2) for the "snd-settle-mode", in order to allow the sender on the other side to send messages both "settle" and "unsettled" on the same link. This address is used for receiving published messages.

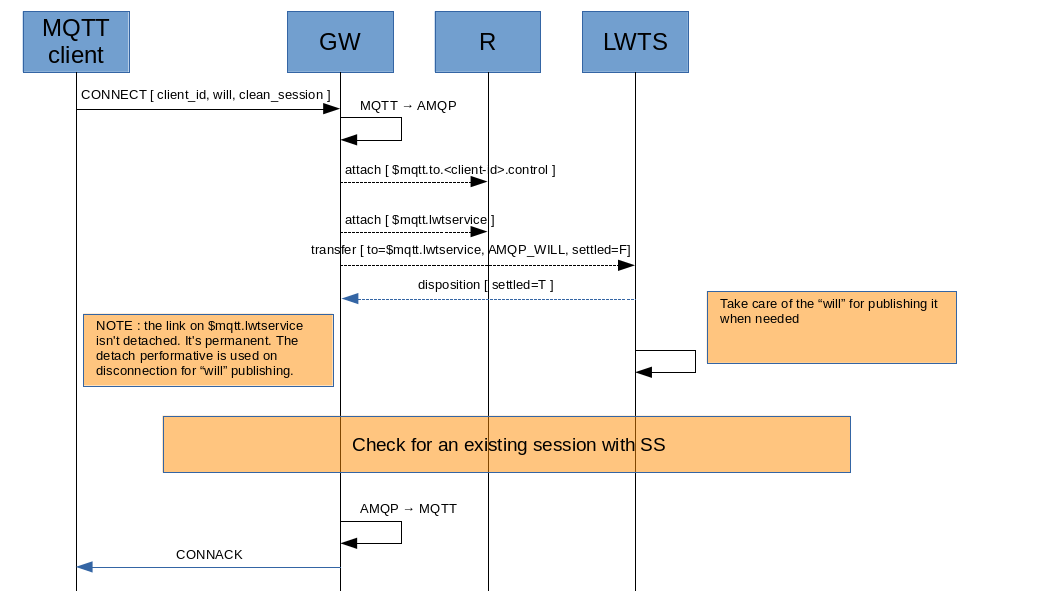

"Will" information to the Last Will and Testament Service
The MQTT client sends a CONNECT message to the FE which extracts "will" information for building the following AMQP message to send to the Last Will and Testament Service.
AMQP_WILL : sent to the WS in order to provide “will” information.
| DATA | TYPE | VALUE | FROM |
|---|---|---|---|
| subject | system property | "will" | - |
| x-opt-retain-message | message annotation | will retain flag | MQTT CONNECT |
| x-opt-mqtt-qos | message annotation | will QoS level | MQTT CONNECT |
| durable | header | will QoS level > 0 | MQTT CONNECT |
| to | system property | will topic | MQTT CONNECT |
| payload | Data section | will message | MQTT CONNECT |
the MQTT QoS level is copied to the x-opt-mqtt-qos annotation. At same time the "durable" header field is set as FALSE if QoS level is 0, TRUE if QoS level is 1 or 2. When the x-opt-mqtt-qos annotations isn't present (i.e. AMQP_WILL published from a native AMQP client which doesn't add it), fallback to use only "durable" and if it's TRUE consider QoS level 1 as default.
The AMQP_WILL is sent as "unsettled", in order to know that the Last Will and Testament Service has received it (with related disposition). The relation between the AMQP_WILL message and the related client, at AMQP level, is inferred by the link name attached to the WS control address.
The FE attaches a permanent link to the $mqtt.willservice address; the WS maps the link-name with the “will” information provided in order to have a 1-1 relationship between them. See “Disconnection”, in order to know how publishing “will” information could happen on client disconnection.
the AMQP_WILL message can be sent by the FE even during client life (not only on connection). It means to overwrite the last “will” information (something that doesn’t exist in the MQTT spec).
"Session" request to Subscription Service
From the same received MQTT CONNECT message, the FE extracts information related to session handling for building the following AMQP messages to send to the Subscription Service. The AMQP message sent depends on the "clean session" flag in the received CONNECT message :
- clean session is TRUE : the AMQP_CLOSE message is used in order to clean any previous session.
- clean session is FALSE : the AMQP_LIST message is used in order to recover the last session with related subscriptions.

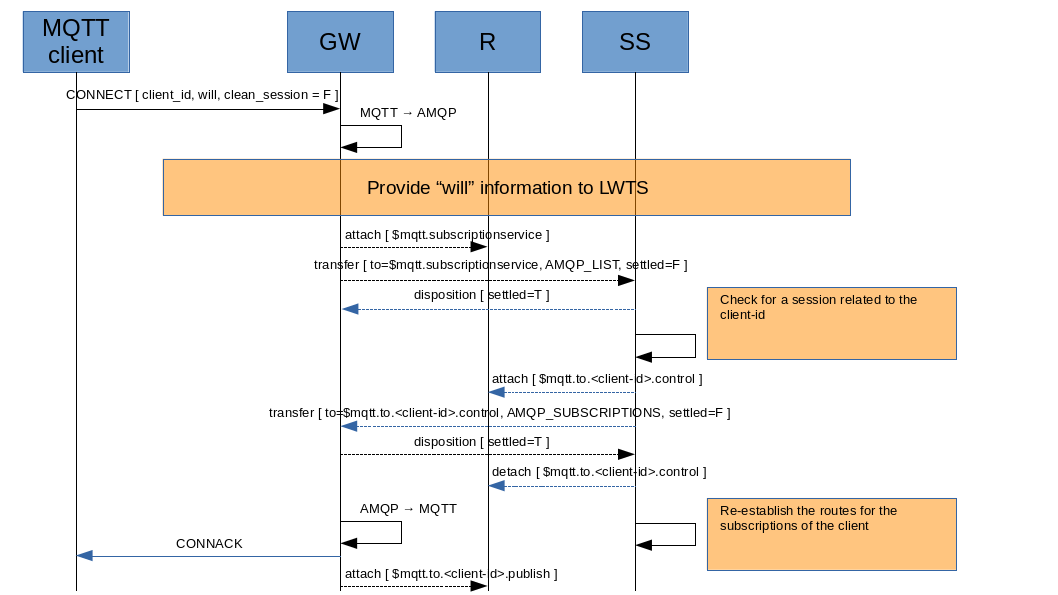

Not clean-session
If the "clean session" from CONNECT packet is FALSE.
AMQP_LIST : sent to the SS in order to to recover the last session with related subscriptions.
| DATA | TYPE | VALUE | FROM |
|---|---|---|---|
| subject | system property | "list" | - |
| correlation-id | system property | $mqtt.to.[client-id].publish | - |
| reply-to | system property | $mqtt.to.[client-id].control | - |
The AMQP_LIST is sent as "unsettled", in order to know that the Subscription Service has received it (with related disposition). The relation between the AMQP_LIST message and the related client, at AMQP level, is inferred by the link name attached to the SS control address.
the [client-id] is the "client identifier" value from the MQTT CONNECT message.
After sending the AMQP_LIST, the FE receives the following message as reply.
AMQP_SUBSCRIPTIONS : sent by the SS to report to FE the last session with related subscriptions.
| DATA | TYPE | VALUE | FROM |
|---|---|---|---|
| subject | system property | "subscriptions" | - |
| payload | AMQP value | Map with topics (as key) and qos (as value) | - |
the map with topics and corresponding qos is related to the subscriptions that were in place in the previous session, now recovered.
The AMQP_SUBSCRIPTIONS is sent as "unsettled", in order to know that the FE has received it (with related disposition).
If a session is present and there are subscriptions for the client-id, the SS re-establishes the routes from each topic to the $mqtt.to.[client-id].publish automatically (see “Subscription/Unsubscription”). No need for the SS to send subscriptions list to the FE in order to re-subscribe.
the SS should send the AMQP_SUBSCRIPTIONS message to FE before re-establishing routes for the topics because it should be first message received by FE (in order to build the CONNACK) if there are messages stored when the client was offline that will be puslished now on re-connect.

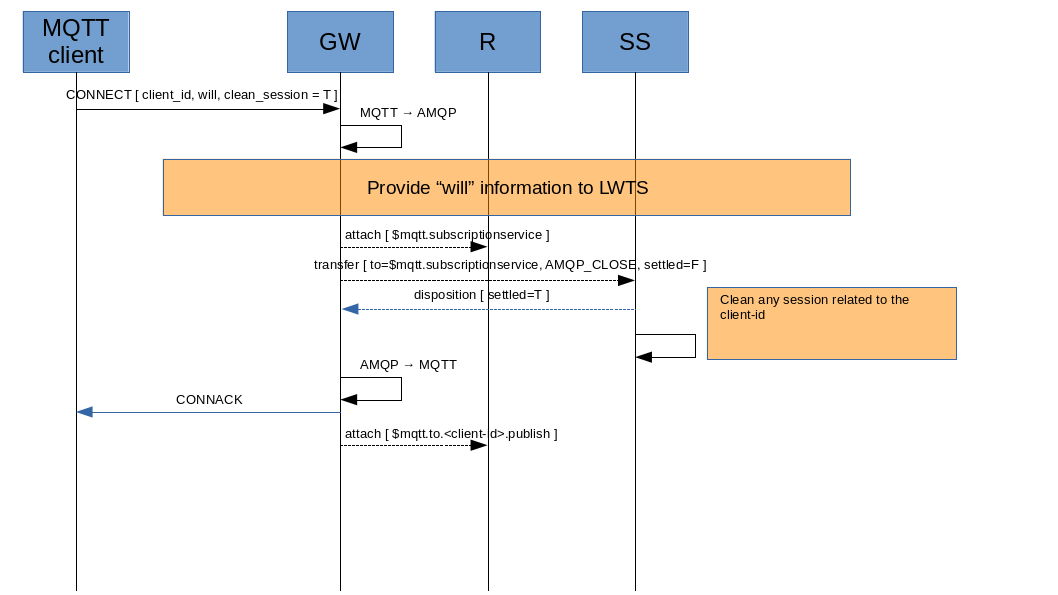

Clean-session
If the "clean session" from CONNECT packet is TRUE.
AMQP_CLOSE : sent to the SS in order to clean any previous session.
| DATA | TYPE | VALUE | FROM |
|---|---|---|---|
| subject | system property | "close" | - |
| correlation-id | system property | $mqtt.to.[client-id].publish | - |
Reply to MQTT client
Based on the replies from Last Will and Testament Service and mostly Subscription Service, the FE builds the CONNACK message and sends it to the MQTT client.
CONNACK
| DATA | VALUE | FROM |
|---|---|---|
| Session present | if sesson is already present | Session present |
| Connect return code | It can depends on some checks on FE side or other on AMQP side | - |
the session present could be (AMQP_SUBSCRIPTIONS body != empty) if AMQP_LIST is used otherwise (AMQP_CLOSE used), it's FALSE.
